Please read an introduction to Amigas in the Amiga 1000 entry.

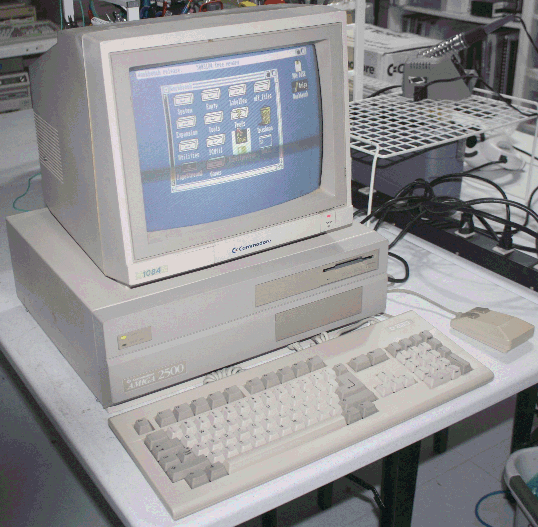

A simple variation on the Amiga 2000. This model actually reads "Amiga 2000" on the serial number sticker. So, what's the difference? The defining feature of the Amiga 2500 is that it came with either a 68020 or 68030 cpu upgrade on either an A2620 or A2630 cpu card. It also came with a hard drive card. My own unit has a 4MB A2630 card.

Statistics, features, and A2500 resources:

CPU: Motorola 68030

• 25 mhz!!
• Other A2500s might have 68020 @ 14mhz

RAM: 1MB "chip", 4MB "fast"

• Expandable to 8 megabytes; more on the 2630 card.

ROM: 256 kilobytes

Video: CSG "Daphne/Denise" chip

• Text: 60 X 32 and 80 X 32
• Hires: 320 X 200 through 640 X 512
• 4096 color palette

Sound: CSG "Portia/Paula" chip

• Four voice stereo Sound

Ports: CSG "Portia/Paula" chip

• 25 pin Centronics Parallel port
• 25 pin RS232 Serial port
• Stereo RF Sound plugs
• 9-pin Mouse/Joystick ports (X2)
• 25-pin Amiga Floppy port
• 23-pin Amiga Video port
• Composite RF Video port
• Internal "Zorro" slots

Keyboard: Full-sized 95 key QWERTY

• 18 key numeric keypad
• 4 direction cursor-pad

Extra hardware:

• Internal 880K 3.5" Floppy Disk Drive
• Internal 200mb hard drive

Resources:

• Boot Issues

Personal Note: Another eBay find. Purchased merely out of curiousity. Will be quickly put away. :)
