Please read an introduction to Amigas in the Amiga 1000 entry.

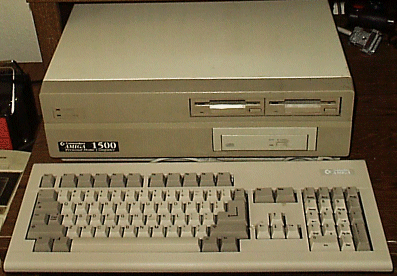

A simple variation on the Amiga 2000. This model actually reads "Amiga 2000" on the serial number sticker. So, what's the difference? Well, this Amiga 2000 variation was only sold in England, for one thing. Another is that the 1500 comes standard with two floppy drives, as opposed to the one in the 2000.

The A1500 may have been a response to the Checkmate 1500, which was a third party case for mounting an Amiga 500 in a desktop. Since the motherboards are not the same, however, this seems unlikely.

Statistics, features, and A1500 resources:

CPU: Motorola 68000

• 7.14 mhz

RAM: 1024 kilobytes

• Expandable to 9 megabytes

ROM: 256 kilobytes

Video: CSG "Daphne/Denise" chip

• Text: 60 X 32 and 80 X 32
• Hires: 320 X 200 through 640 X 512
• 4096 color palette

Sound: CSG "Portia/Paula" chip

• Four voice stereo Sound

Ports: CSG "Portia/Paula" chip

• 25 pin Centronics Parallel port
• 25 pin RS232 Serial port
• Stereo RF Sound plugs
• 9-pin Mouse/Joystick ports (X2)
• 25-pin Amiga Floppy port
• 23-pin Amiga Video port
• Composite RF Video port
• Internal "Zorro" slots

Keyboard: Full-sized 95 key QWERTY

• 18 key numeric keypad
• 4 direction cursor-pad

Extra hardware:

• Two internal 880K 3.5" Floppy Disk Drives

Resources:

• Boot Issues

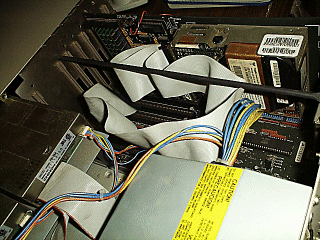

Personal Note: Another eBay find. Purchased merely out of curiousity. Was quickly put away. The one I have has been upgraded with a GVP SCSI card including 6mb extra ram and 200mb hard drive.:)
