Commodore 1084S-D, 1084S-D1, 1084S-P, 1085S-D2, 1085S-D3


cbm/monitors/1084s.gif
These monitors are functionally equivalent to the 1902, 1080, 1084, and 2002 except that they are Stereo monitors (thus the "S" in 1084S). The 1084S-D1 appears to be a different manufacturing source than the 1084S, with a much harder to reach COMP/RGBI switch (it's on the back of the unit instead of the front, like the 1084S). The 1085S-D2 and 1085S-D3 are the only PAL 220V members of this group, and the 1085S-D3 the only one that lacks any composite or Chroma/Lumina inputs.




cbm/monitors/1084s.gif

Model      : 1084S
Type       : Composite & Digital/Analog RGB monitor
Screen size: 14"
Interface  : RGBI & RCA Chroma/Lumina/Audio
Notes      : Stereo speakers, analog and digital connector pinouts from pinouts.ru


cbm/monitors/1084sd.gif

Model      : 1084S-D
Type       : Composite & Digital/Analog RGB monitor
Screen size: 14"
Interface  : RGBI & RCA Chroma/Lumina/Audio
Notes      : Stereo speakers


cbm/monitors/1084sd1.gif

Model      : 1084S-D1
Type       : Composite & Digital/Analog RGB monitor
Screen size: 14"
Interface  : RGBI & RCA Chroma/Lumina/Audio
Notes      : Stereo speakers, connector pinouts from pinouts.ru

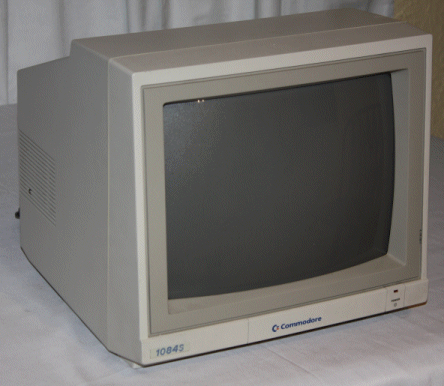

cbm/monitors/1084sp.gif

Model      : 1084S-P
Type       : Composite & Digital/Analog RGB monitor
Screen size: 14"
Interface  : RGBI & RCA Chroma/Lumina/Audio
Notes      : Stereo speakers, connector pinouts

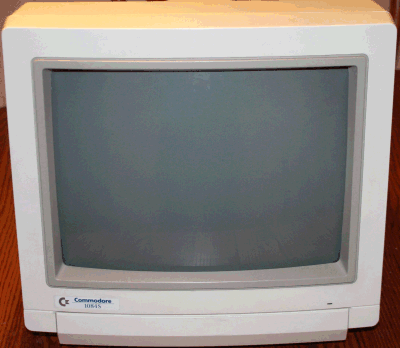

cbm/monitors/1085sd2.gif

Model      : 1085S-D2
Type       : Composite & Digital/Analog RGB monitor
Screen size: 14"
Interface  : RGBI & RCA Chroma/Lumina/Audio
Notes      : Stereo speakers

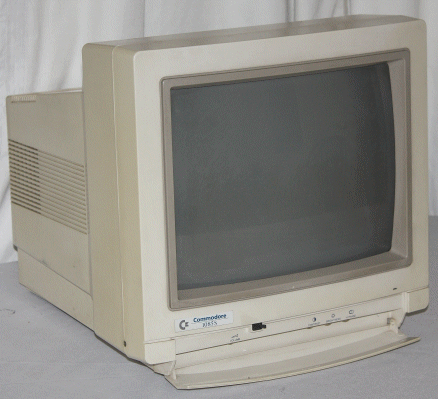

cbm/monitors/1085sd3.gif

Model      : 1085S-D3
Type       : Digital/Analog RGB monitor
Screen size: 14"
Interface  : RGBI
Notes      : Stereo speakers
