CBM

Commodore 500

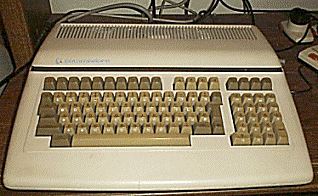

cbm/PetsNBs/b700.gif As mentioned on the page for the B128, the CBM-II models were Commodore's last effort to capture the business market with it's superior proprietary technology. All the machines in this line are distinguished by the MOS 6509 processor, Commodore BASIC 4.0 (like that found in the later CBM/PET computers, the Commodore "SID" sound chip, IEEE-488 peripheral compatibility, an RS232-C port, and 80 column text video capability. Shown here is a early prototype 256k low profile CBM-II machine. This computer is part the "low profile" CBM-II series, called such because they feature a single integrated unit with a full business keyboard, numeric keypad, and 12 function keys. Being a 256k version of the 610, it stores 64K in bank 1 for BASIC code, and bank 2 for variables, but then adds banks 3 and 4 for variable storage as well.

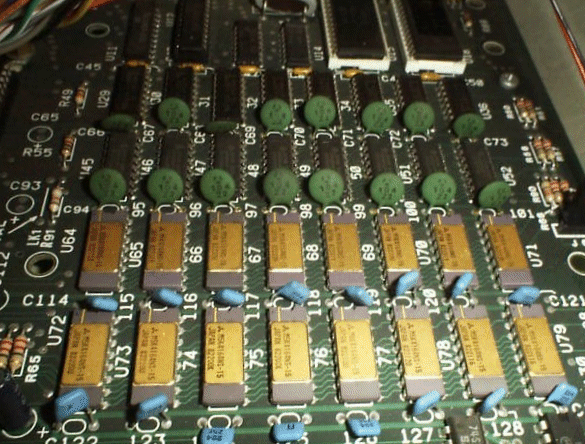

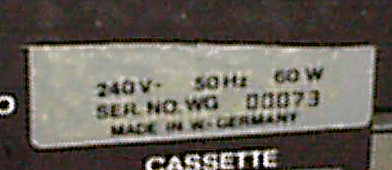

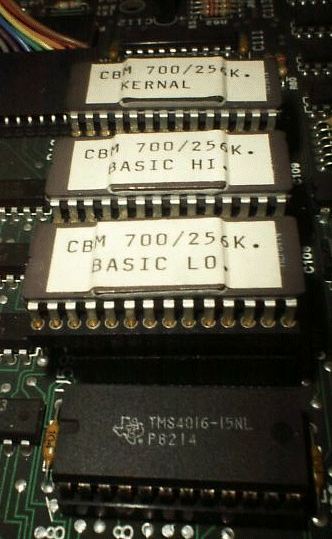

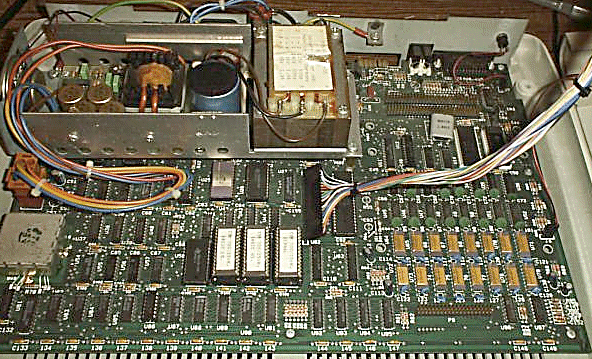

Due to the cut label, the model number of this machine is hard an ascertain, though Commodore 500 would probably be most correct. The low serial number, CBM P500 back plate, West German construction, and top-mounted power supply point to its very early construction. This computer was initially constructed as a 128K machine. The second two banks of ram chips date from 1984, two years after the other chips. However, the CBM 700 EPROM chips inside are of typical Commodore factory make, and are mounted on typical Commodore factory make 28-24 pin adaptors. This suggests that the machine was upgraded by Commodore itself, and sold during the great CBM-II series dump of '84.

Just in case it is useful for identification, here is the assembly number of the motherboard and another marking. The number stamped in black reads "1983".

Statistics, features, and 500 resources:

CPU: MOS 6509 RAM: 128 Kilobytes
cbm/b610/cbm500open.gif ROM: 24 Kilobytes

Video: MOS 6545 CTRC Sound: MOS 6581 SID
cbm/b610/610backLil.gif Ports: CSG 6551/6525x2/6526
cbm/b610/cbm500keyboardLil.gif Keyboard: Full-sized 102 key QWERTY Resources



Personal Note:The CBM-II line are personally very cool to me. I used to sit and write little BASIC programs on these things, but they fell out of favor as my collection grew, so now they are all boxed up. This machine, whatever its model, came from an eBay auction.
