Please read the intro to the 264 Series in the C16/C116 entry before proceeding.

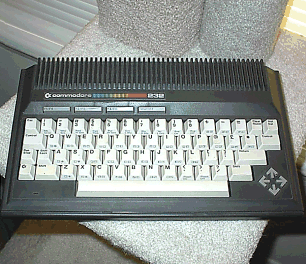

The middle tier of the 264 series consisted initially of the Commodore 264 when first announced. Later, the Commodore 232 was added to the announced catagory, though only the Plus/4 made it to market, however. Since the 232 was never released, the unit you see here is undoubtedly a demo unit, or a pre-production prototype. Some board changes were made to accomodate the lower (32k) memory configutation, and the board lacks the built in software found in the Plus/4. Otherwise, it is architectually identical to the Plus/4.

The Commdore 232, like the C16, was developed based on Commodore 264 and 116 designs by engineers at Commodore-Japan, in consultation with engineers at Commodore-US.

Statistics, features, and C232 resources:

CPU: MOS Technology 7501

• Variable clock rate, with max 1.76mhz

RAM: 32 kilobytes

ROM: 32 kilobytes

• C264 Series Kernal & BASIC v3.5
  • 50 more commands than BASIC 2.0
  • Download BASIC 3.5 ROM image
  • Download Kernal ROM image

Video: MOS Technology 7360 "TED"

• 5 Video modes
• Max. Resolution 320 X 200
• 40 columns text
• Pallette of 16 colors in 8 shades, for 128 colors.

Sound: MOS Technology 7360 "TED"

• 2 voice tone-generating sound capabilities

Ports: MOS 7360

• 2 Joystick/Mouse ports
• Round DIN CBM Serial port
• Female edge-connector 'TED' port
• Round DIN CBM Monitor port
• RCA-Style RF Audio/Video port
• Power and reset switches
• DIN Power connector

Keyboard: Full-sized 67 key QWERTY

• 8 programmable function keys
• 4 direction cursor-pad

Resources:

• 264 Series Memory/IO Maps
• View PLA info

Personal Note: The Commodore 232 was an extremely lucky find. I received it from a German collector named Claus Shoenleber during negotiations for the CBM 900.
