Pictures of the Commodore 128DL

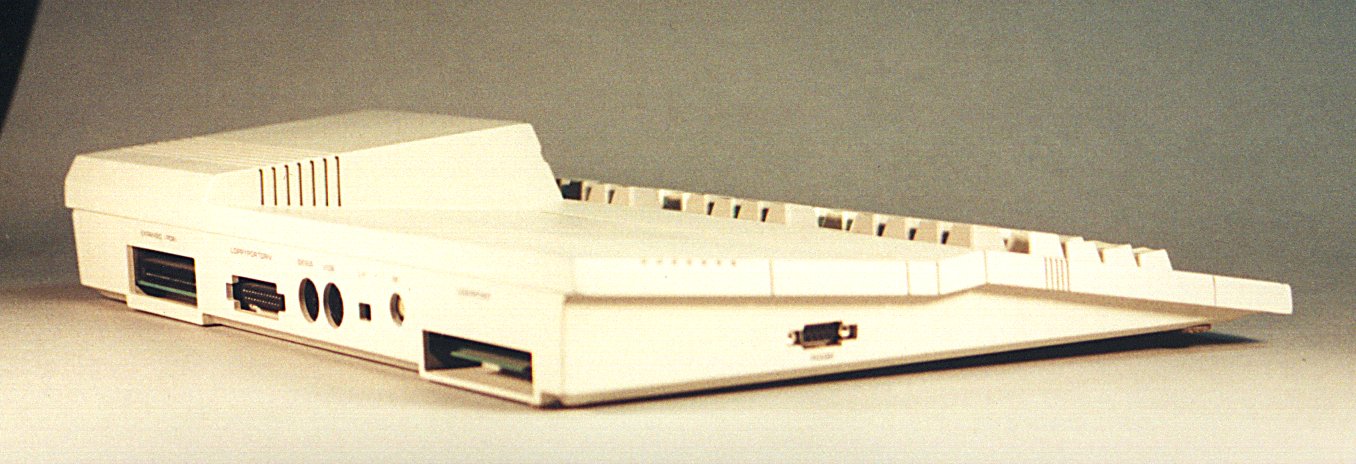

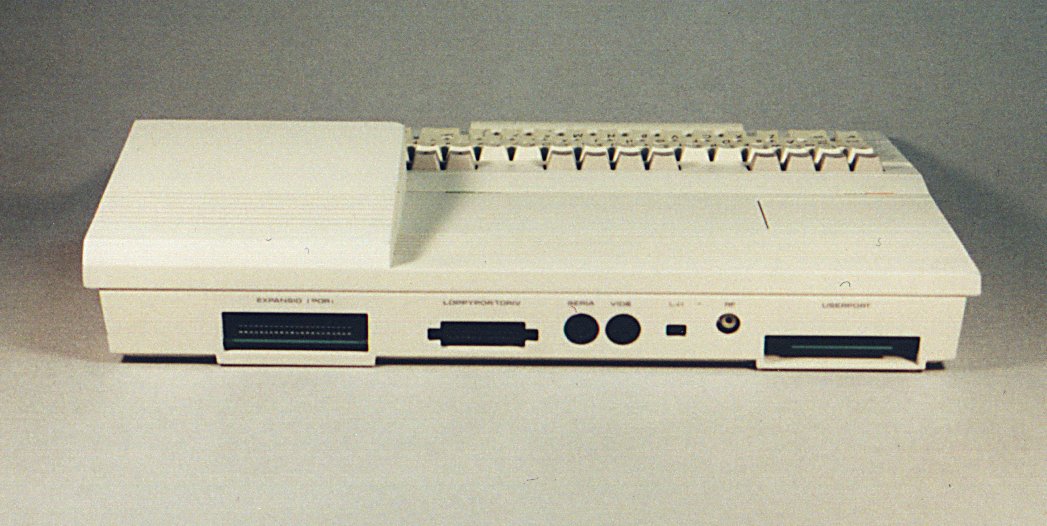

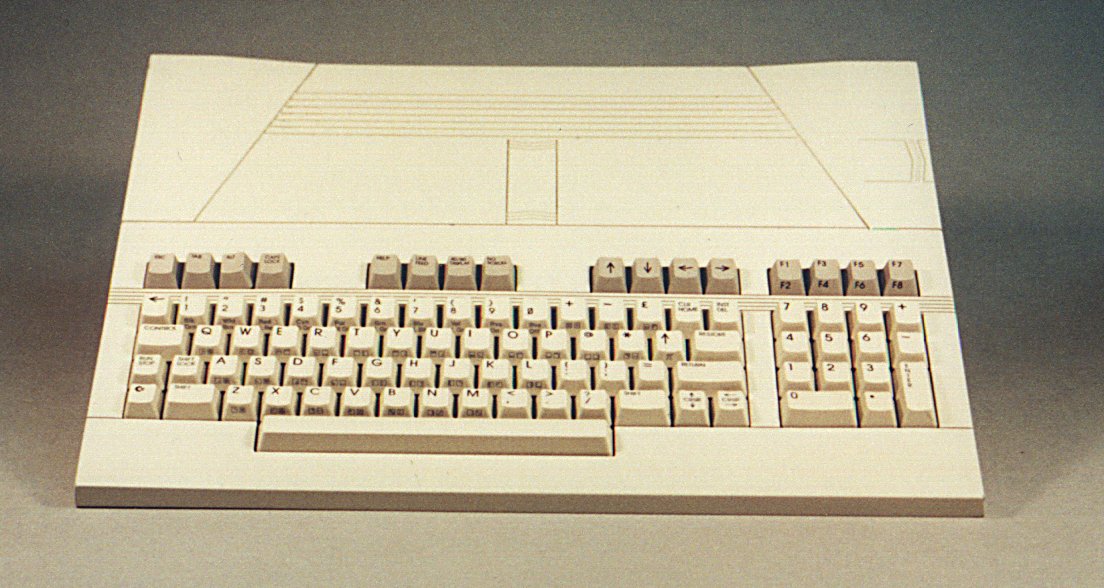

The Commodore 128DL prototypes shown here are not in my collection, but were scanned photographs courtesy of Maurice Randall. They show different designs for a Commodore 128 with a built in 3.5" disk drive. According to the Secret Weapons page, the C128DL mockups shown here were made using non-production quality plastic (like my own V364). They are also reputed to be completely non-functional.

(Click on an image to see it closer)

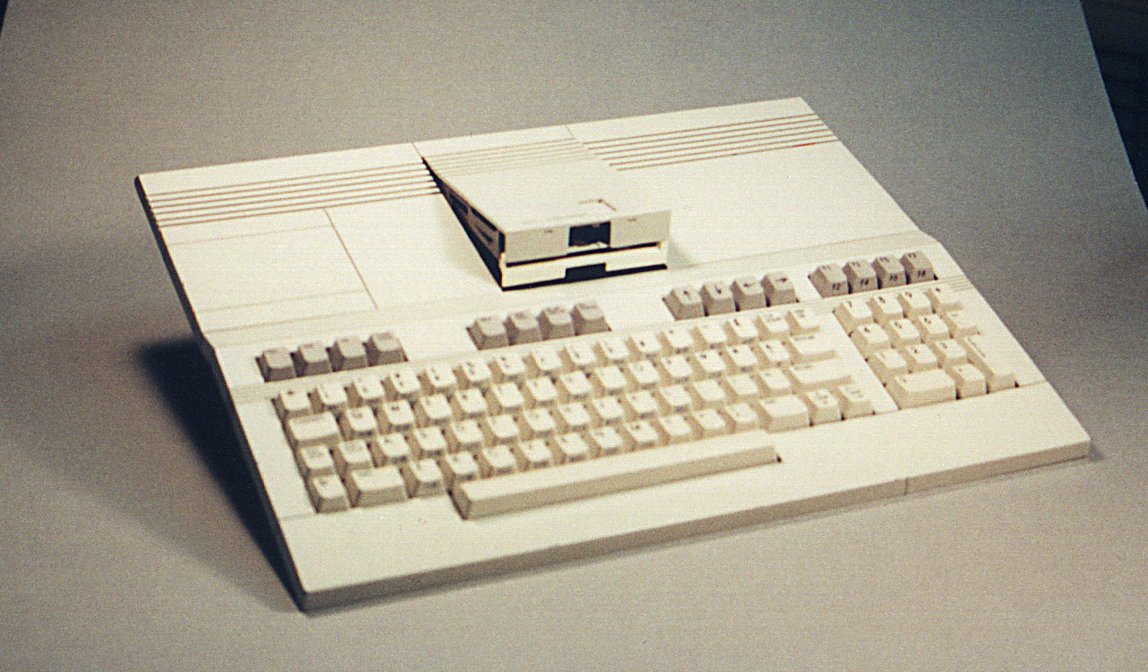

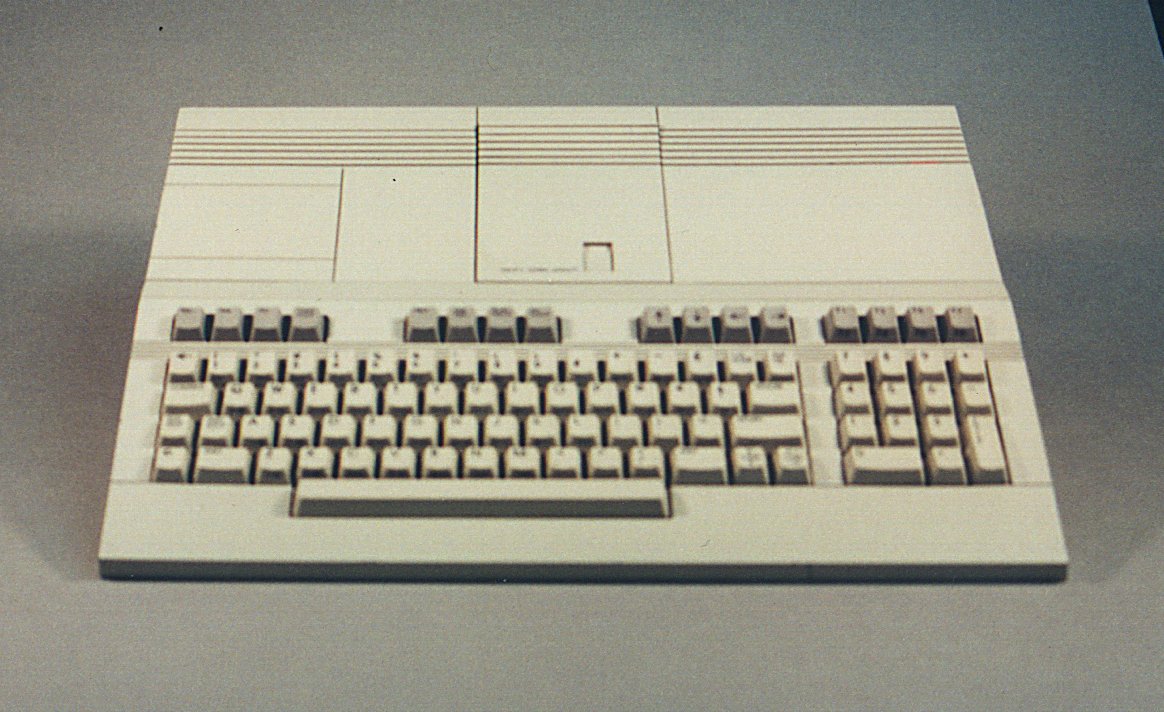

Pop-Top Variation:

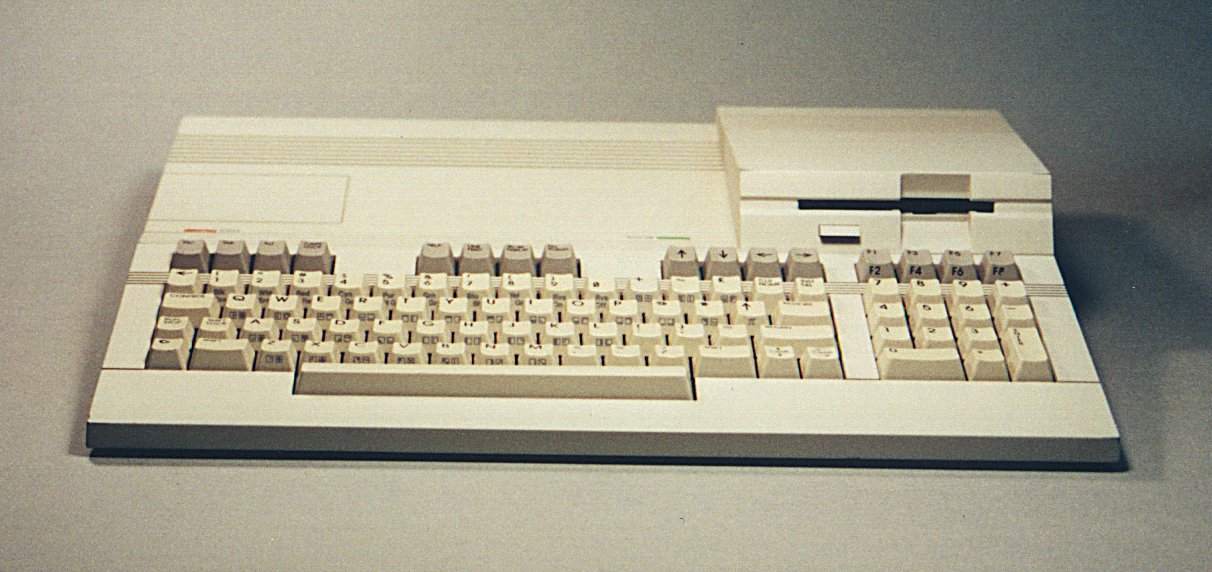

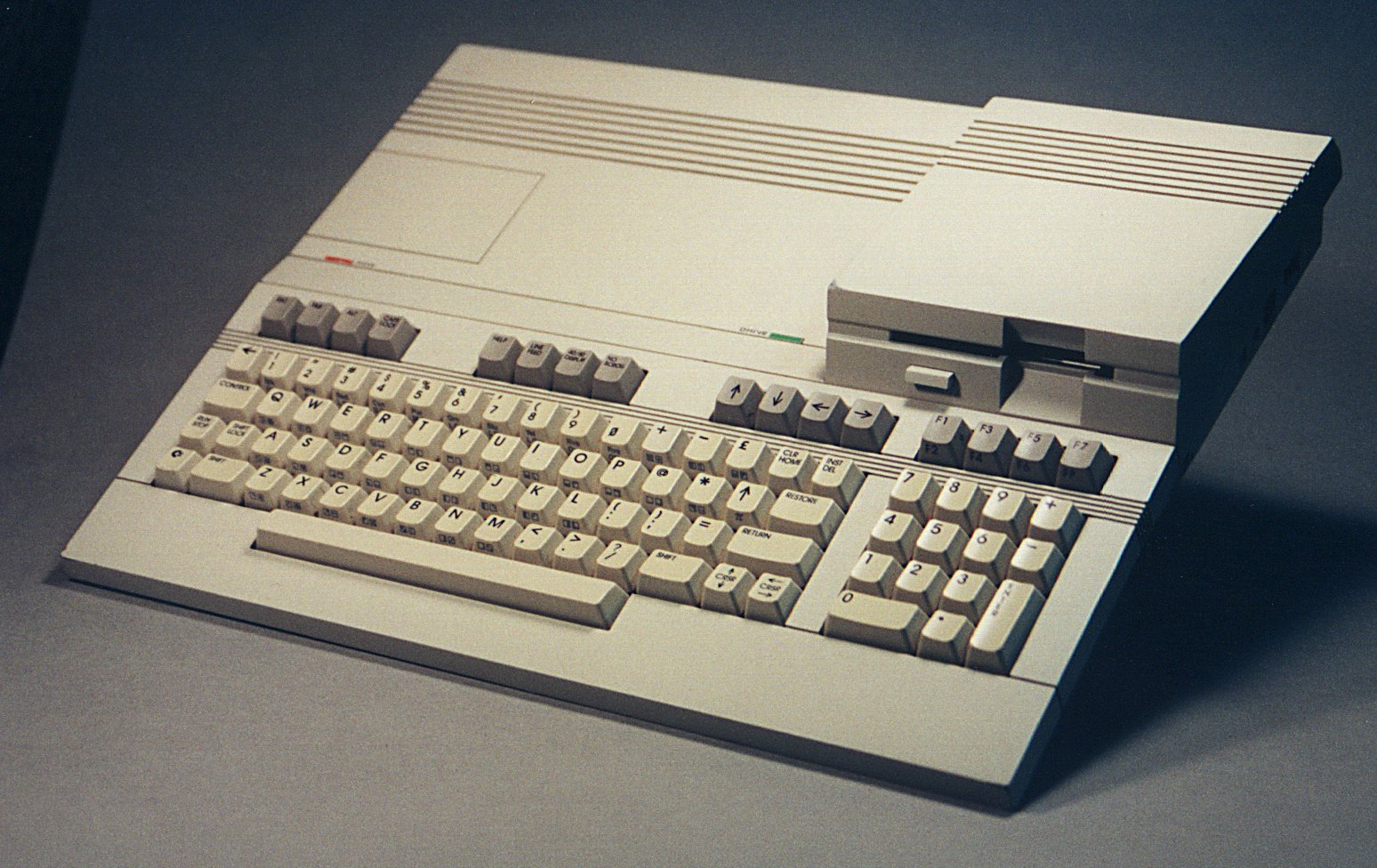

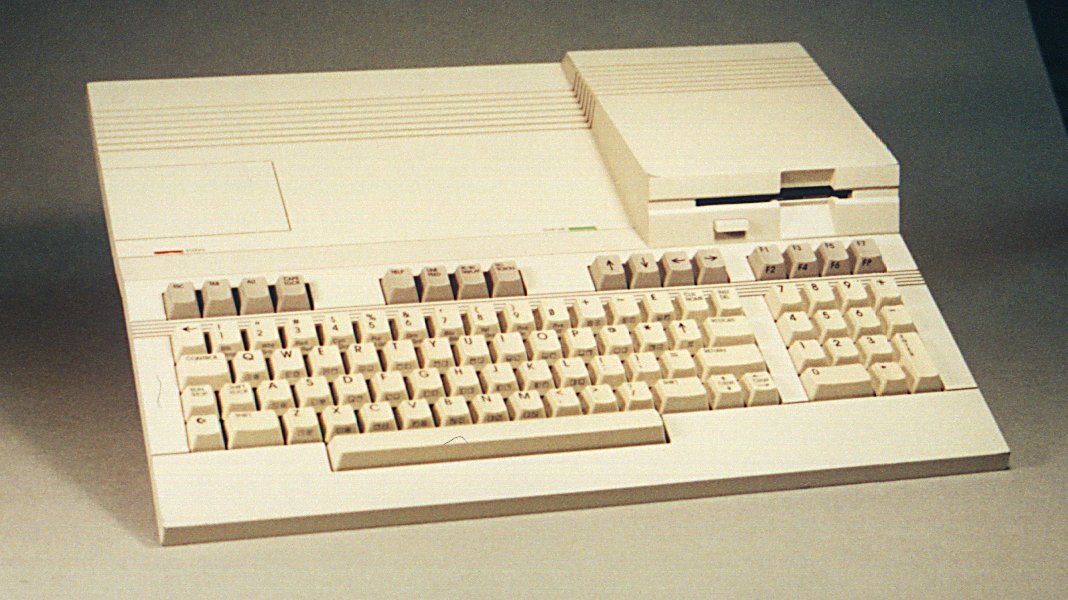

Top-Mounted Variation:

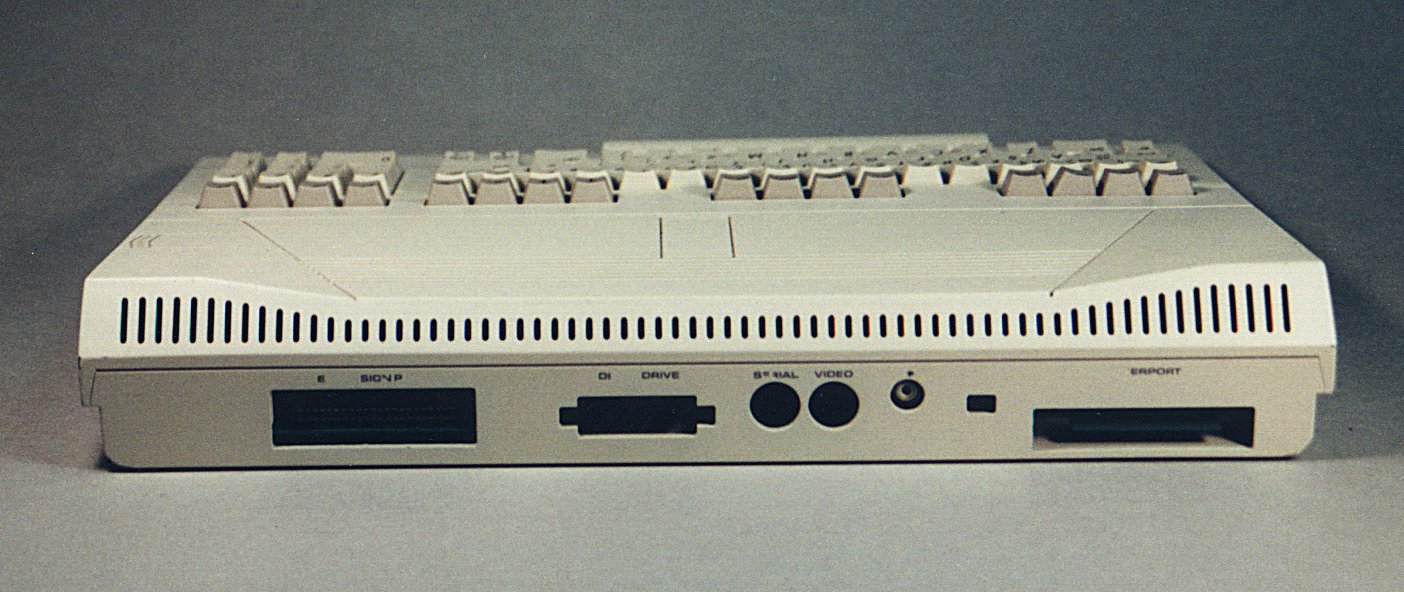

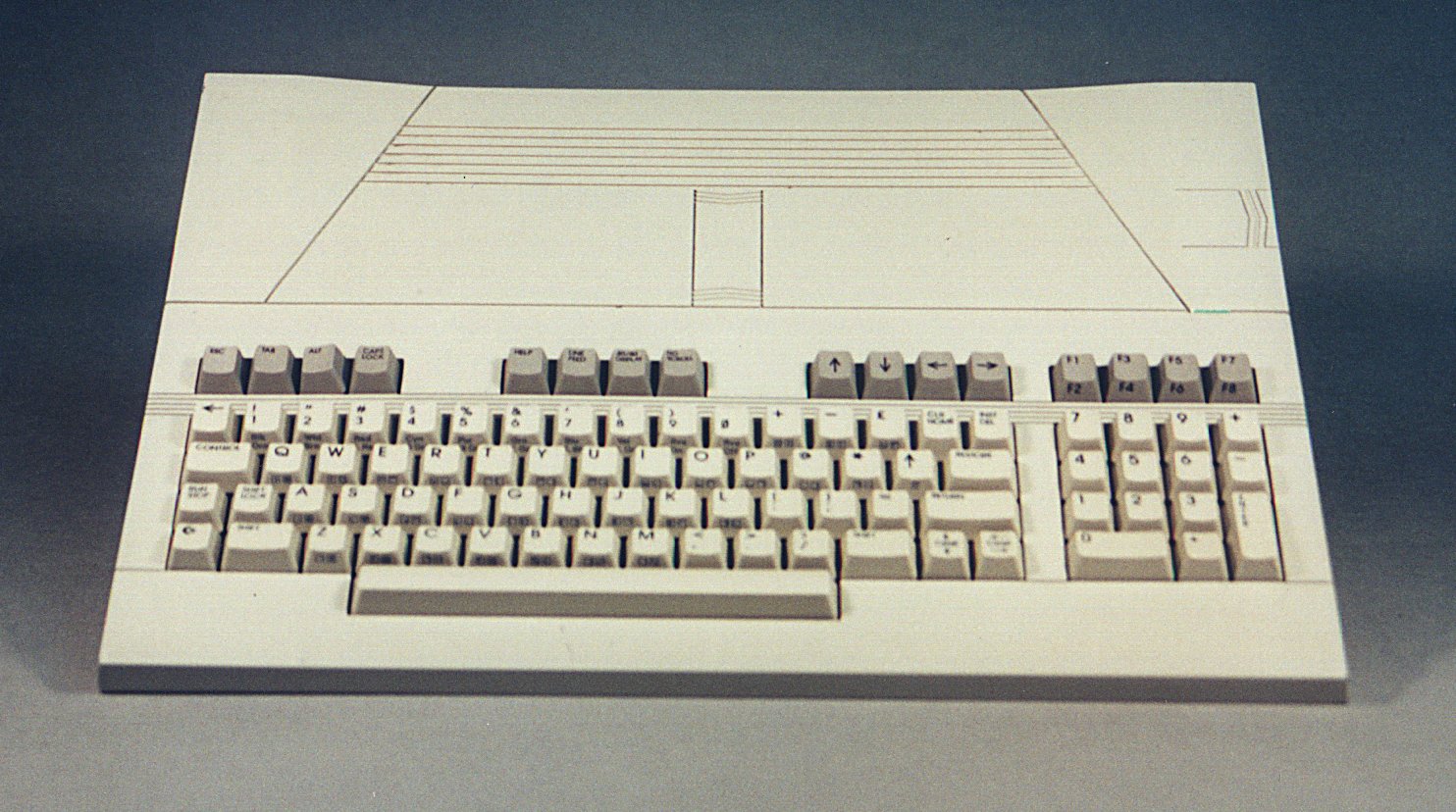

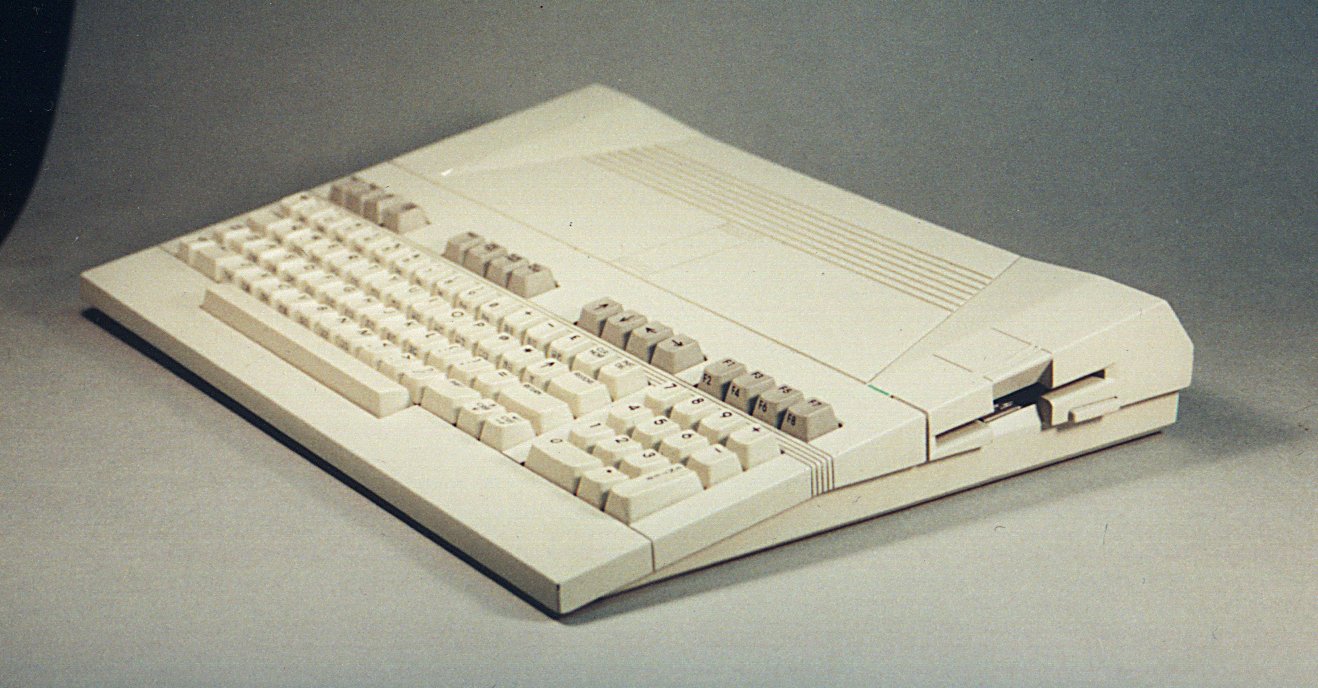

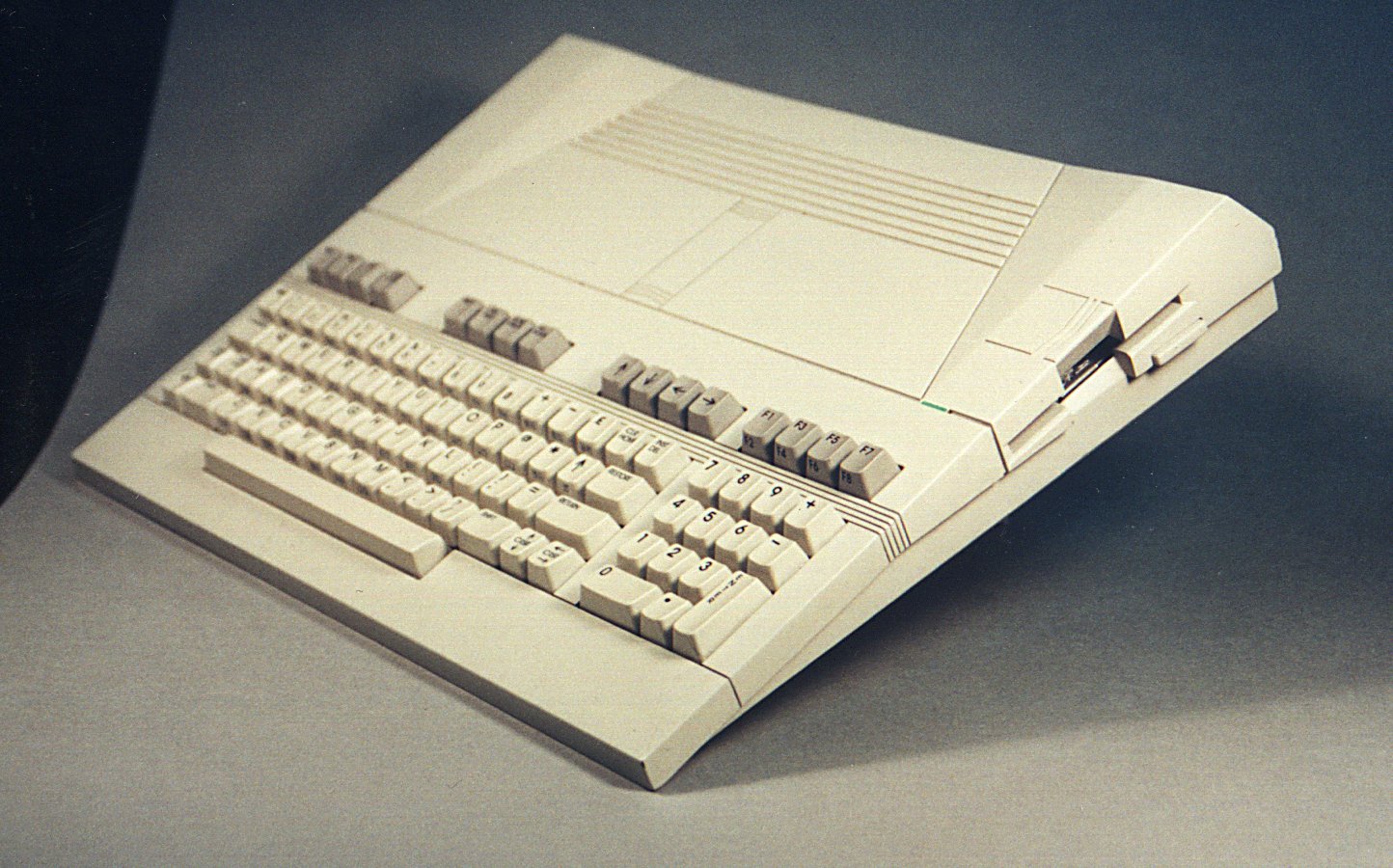

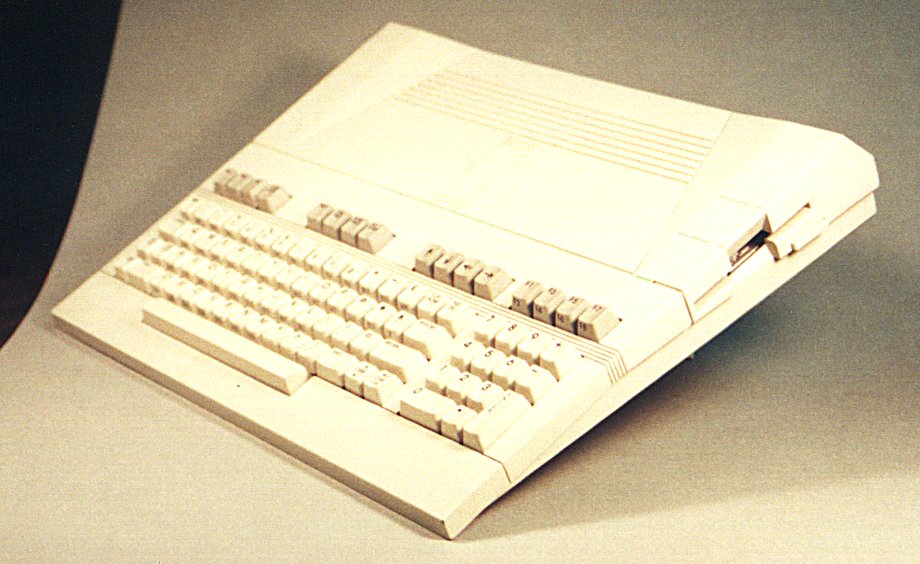

Side-Mounted Variation:
